The Faber FWG JAZZ 25V ELITE Titanium is a 25-litre vertical storage water geyser designed for households that need a dependable supply of hot water for everyday bathing and household use. Its 25-litre storage capacity provides a ready reserve of heated water, while the 2000W heating system is designed for efficient water heating.
Built for high-pressure applications, the geyser supports 8 Bar pressure, making it suitable for high-rise buildings. The unit features a CRCA EDD Grade storage tank with Glass Line Coating, along with a Glass Line Incoloy heating element and heavy-duty magnesium anode rod to address corrosion-related concerns and support operation in hard-water conditions.
The geyser also incorporates variable temperature control from 30°C to 75°C, a power and heating indicator, and safety features including an MFV safety valve and thermal cut-out. Its 5-Star BEE rating and vertical installation design make it a practical choice for regular household hot-water requirements.
Key Features
25-Litre Storage Capacity
The 25-litre tank provides stored hot water for everyday bathing and household requirements. The storage format allows water to be heated and retained in the tank instead of requiring water to be heated only as it is being used.

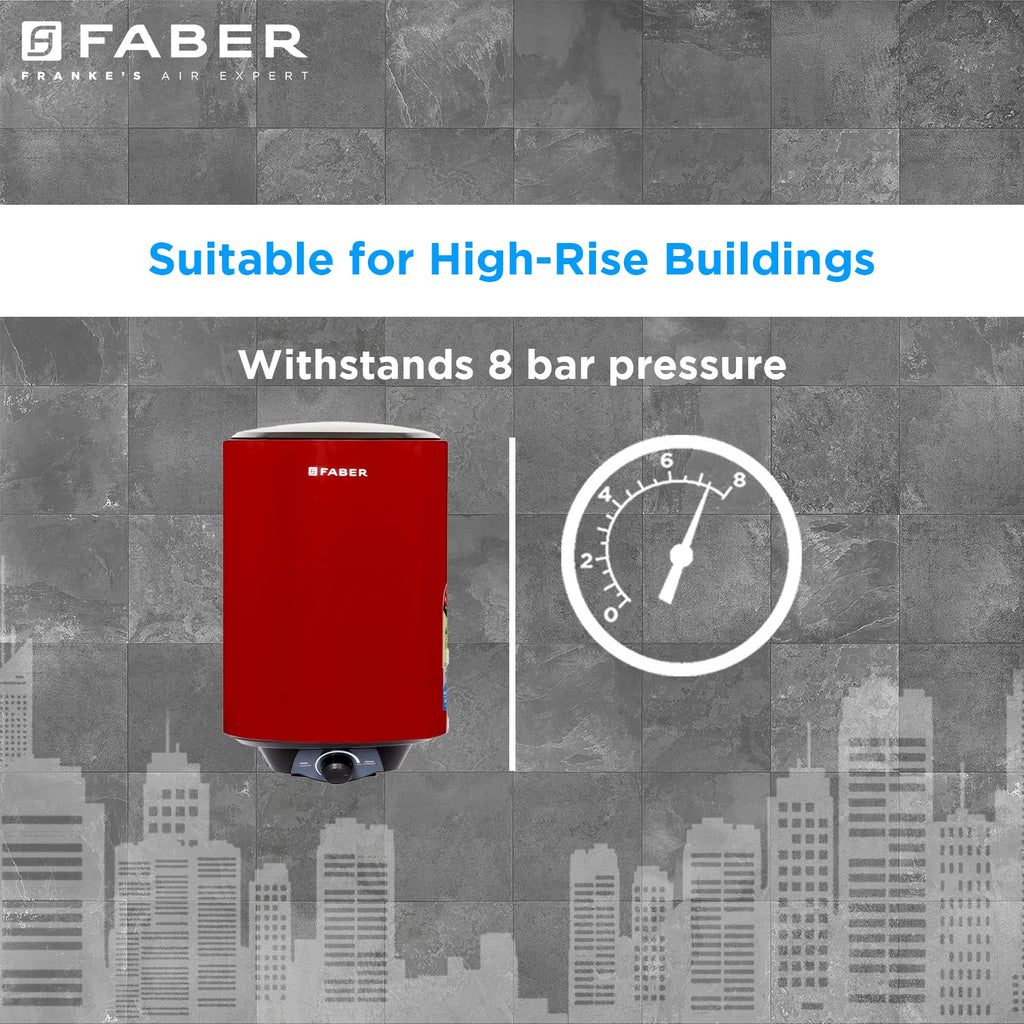

8 Bar Pressure for High-Rise Applications
With a rated pressure of 0.8 MPa (8 Bar), the geyser is designed for higher-pressure water systems. This makes it suitable for installations where water pressure can be higher, including high-rise buildings.

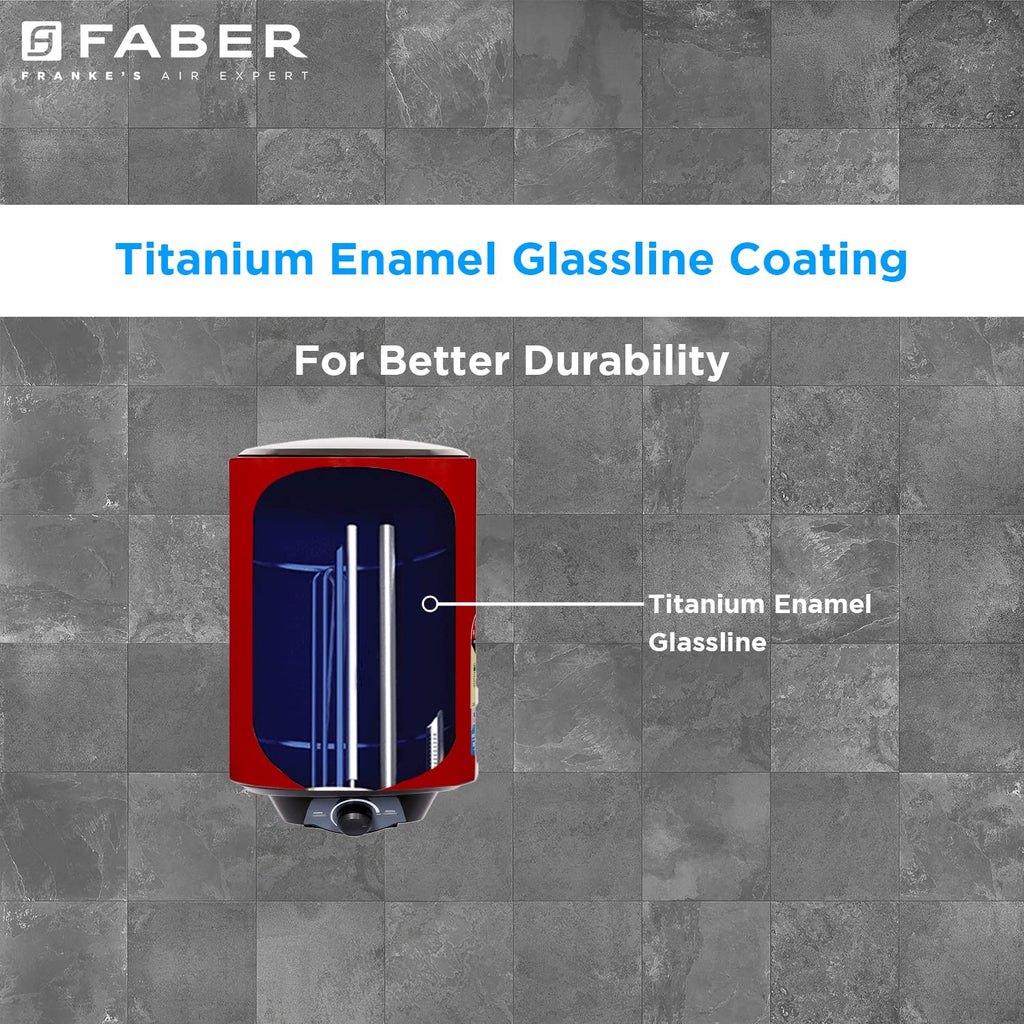

Glass Line Coated Storage Tank
The storage tank uses CRCA EDD Grade material with Glass Line Coating. This coating is designed to help protect the tank against corrosion, which is particularly useful in environments where water quality can contribute to tank corrosion.
Glass Line Incoloy Heating Element
The geyser uses a Glass Line Incoloy heating element for heating the stored water. The glass-line construction is specified for operation in hard-water conditions and helps provide uniform heating.

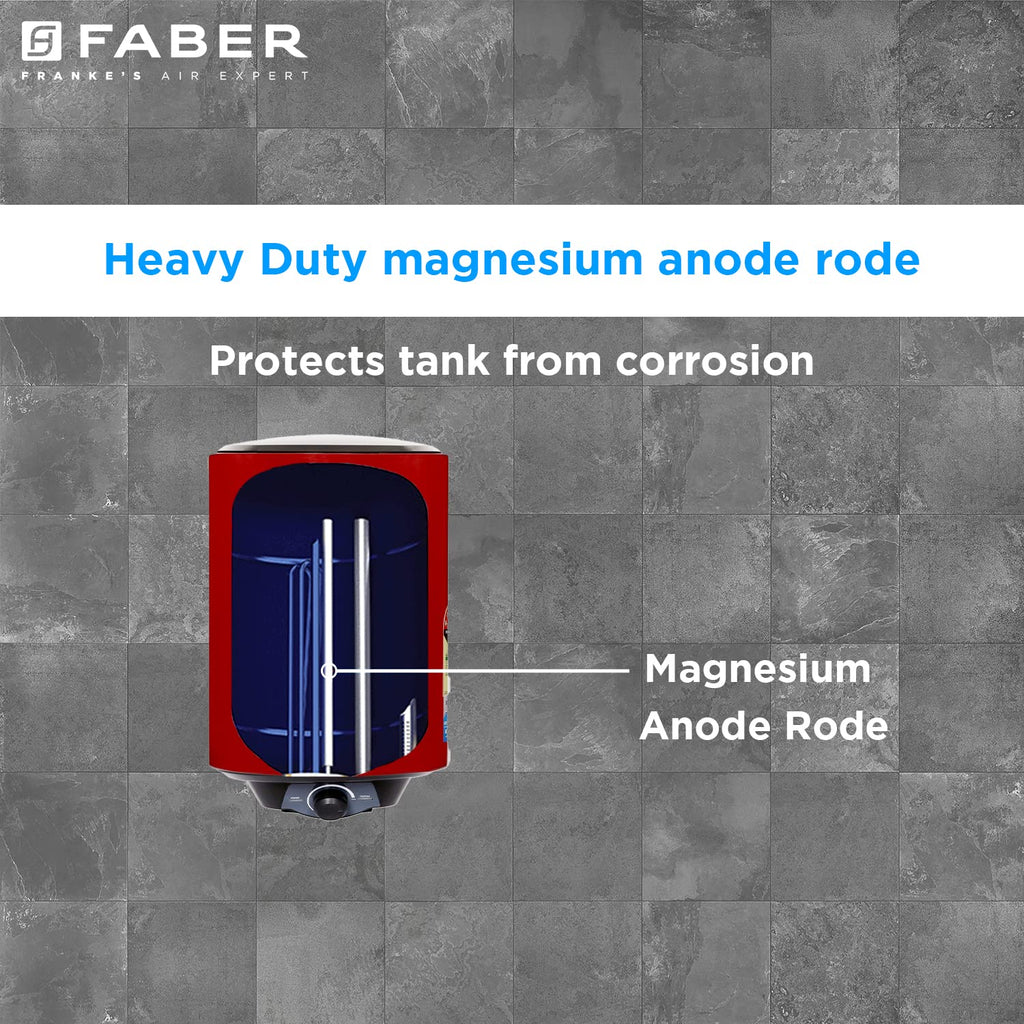

Heavy-Duty Magnesium Anode Rod
A heavy-duty magnesium sacrificial anode is included to help protect the tank from corrosion. This provides an additional layer of protection for the storage tank during regular operation.

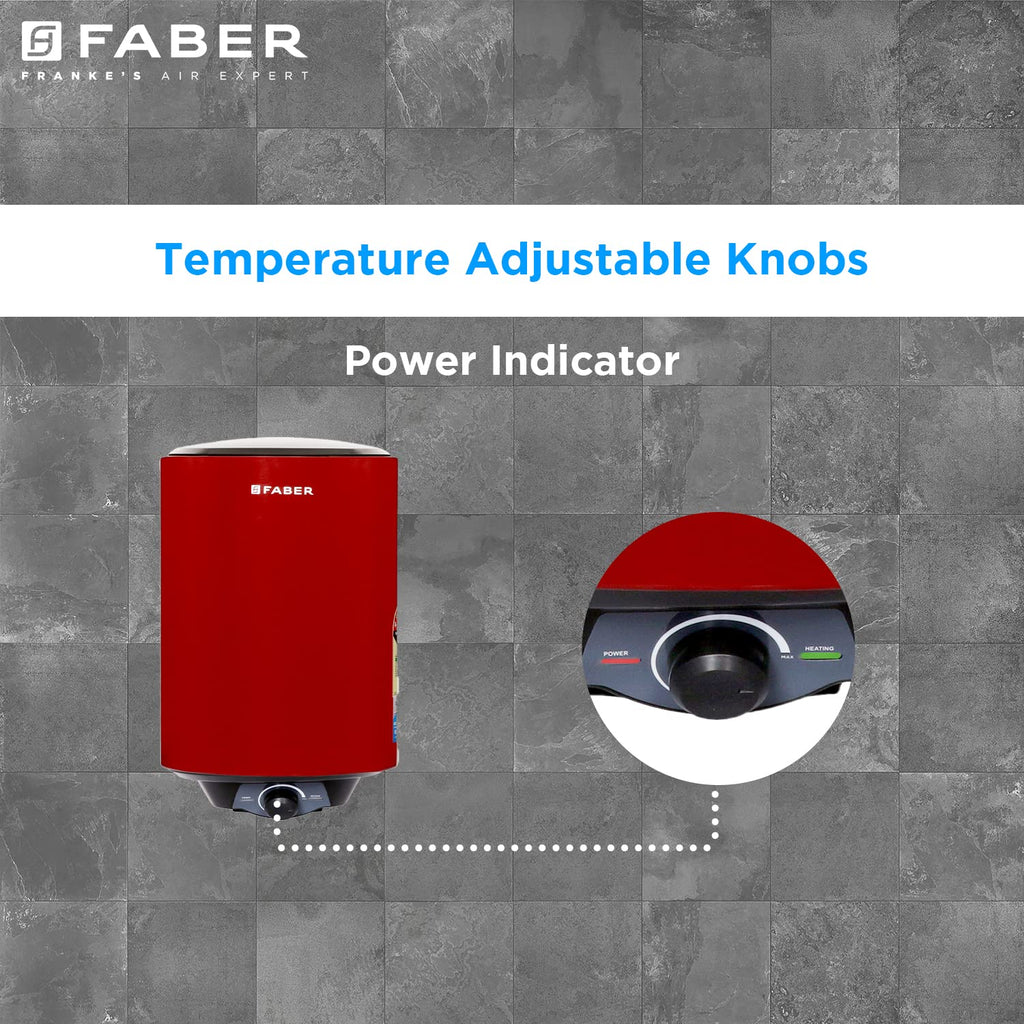

Variable Temperature Control
The temperature can be adjusted between 30°C and 75°C. This allows users to select a suitable water temperature according to their bathing or household requirements rather than relying on a single fixed temperature.
Multiple Safety Features
The geyser incorporates safety components including an MFV safety valve and thermal cut-out. These features are designed to provide protection during operation and help manage pressure and excessive-temperature conditions.
5-Star BEE Rating
The model carries a 5-Star BEE rating. This provides an energy-efficiency classification for the water heater and can help customers compare its efficiency with other rated models when choosing a geyser.
Vertical Installation
The FWG JAZZ 25V ELITE Titanium is designed for vertical mounting. This configuration is suitable for bathrooms or utility areas where a vertical storage water heater can be installed.
Technical Specifications
| Feature |
Details |
| Brand |
Faber |
| Model |
FWG JAZZ 25V ELITE Titanium |
| Product Type |
Stationary Storage Type Electric Water Heater |
| Capacity |
25 Litres |
| Colour |
Titanium |
| Technology |
Glass Line Coated CRCA EDD Grade Storage Tank, Glass Line Incoloy Heating Element, Heavy-Duty Magnesium Anode, Multiple Safety System |
| Power |
2000W |
| Voltage |
230V |
| Frequency |
50Hz |
| Dimensions |
360 × 360 × 570 mm (L × W × H) |
| Weight |
11.2 kg Net Weight |
| Manufactured By |
Decotech Electricals Pvt. Ltd., Khasra No. 265, Khata No. 305, Kila No. 14,15,16,17, Farmana, Kharkhoda, Sonipat - 131402 |
| Packed By |
Decotech Electricals Pvt. Ltd., Khasra No. 265, Khata No. 305, Kila No. 14,15,16,17, Farmana, Kharkhoda, Sonipat - 131402 |
| Country of Origin |
India |
| Mounting Type |
Vertical |
| Pressure Rating |
0.8 MPa / 8 Bar |
| BEE Star Rating |
5 Star |
| Heating Element |
Glass Line Incoloy Element |
| Storage Tank |
CRCA EDD Grade, Glass Line Coating |
| Thermostat / Temperature Control |
30°C–75°C |
| Safety Features |
MFV Safety Valve and Thermal Cut-out |
| Maximum Water Head |
80 m |
| Indicator |
Power and Heating |
| Product Type / Protection |
Closed Type, Drip Proof Class-I, IPX1 |
| IS Standards |
IS:2082 & IS:302-2-21:2024 |
| Package Contents |
1 Electric Water Heater, 1 User Manual, 1 Warranty Card, 1 Safety Valve, 1 Set Expanding Screw with Nut |
